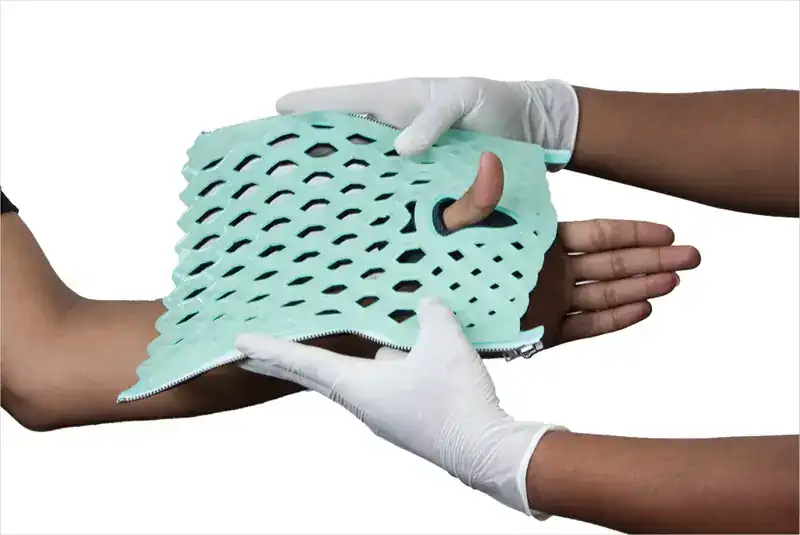

Step 1
Size it
Choose the variant and size. The pre-cured immobilizer is soft and mouldable.
Home / Technology
Light-cured polymer immobilizer
Soft on the limb. Rigid in minutes under UV-free light. Washable and breathable for the whole recovery.
Watch the cure
From soft sleeve to rigid shell in minutes
Unboxing to cured, in 46 seconds. Sizing, zipping, and curing under the RizyCure light.
FlexiOH® holds a photo-curing resin sealed in silicone, bonded to a foam liner. On the limb it stretches and moulds. Under RizyCure's high-intensity blue light a photochemical reaction hardens it — typically in three to five minutes.
- Water-free. No slurry, no bath, no setting clock.
- Cured when you say so. Reduce, position, check — then apply the light.
- About 45% open to air. Skin visible, sweat evaporates, washable.
- Unaffected by heat or moisture once cured.
Features
What the polymer gives you
100% waterproofBathe, shower and swim.
BreathableAbout 45% open to air.
LightweightA fraction of the weight of plaster.
Zip applicationWrap, zip and lock in minutes.
ComfortableBiocompatible foam against the skin.
Latex freeNon-sensitising, non-irritating materials.
UV-free curingVisible blue light only.
RecyclableMade in a solar-powered, zero-discharge facility.
Safety
Safe for skin, eyes and the cast room
- 100% UV-free. RizyCure emits visible blue light only — no ultraviolet component.
- Skin-safe materials. Latex-free foam liner tested to ISO 10993-10; non-sensitising, non-irritating.
- Eye protection. Avoid looking into the light; wear the supplied goggles during curing.
- Surface warms during curing. Do not touch the outer surface until cured; the foam liner shields the skin.
- No cast saw. Removal with bone-cutting forceps — no saw burns, no lacerations, no noise, no dust.
- Class I, Type B device. RizyCure Corded runs from 110–240 V mains; maximum continuous run about 10 minutes.
- Single use, checked before use. Every unit is leak-tested at the factory; a leaking unit is never applied.
- Made under ISO 13485. Certified by BSI; CE marked; US FDA listed.
Live in action
In clinics, on patients
Curing a long thumb spica. Fitted, zipped and cured in the clinic.
Guatemala. First light-cured immobilizer in the country — from clinic to pool.
Size it. Zip it. Cure it. The 30-second film.
Full application films exist for every variant (short arm, full arm, long thumb spica, radial gutter, ulnar gutter, short leg). Host them on the production site and embed them here.
In the cast room
Size it. Zip it. Cure it.

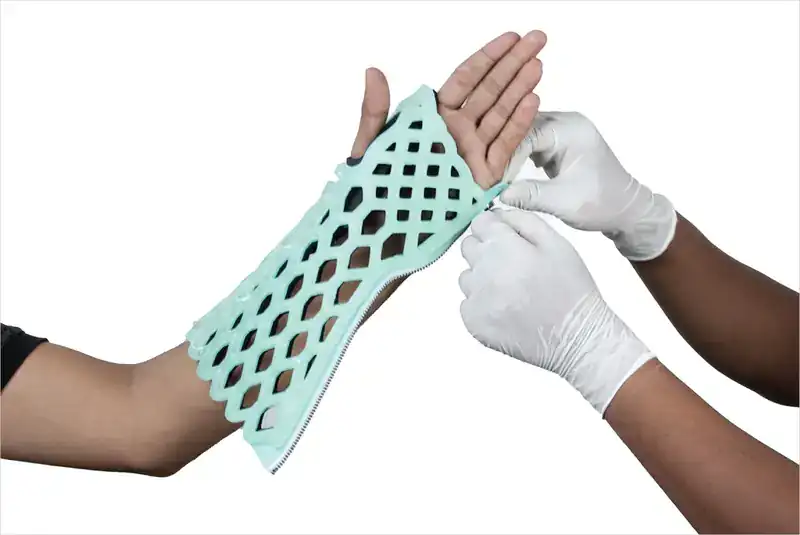

Step 2
Zip and lock it
Wrap, zip and set the limb. Align the bone now — nothing changes after curing.

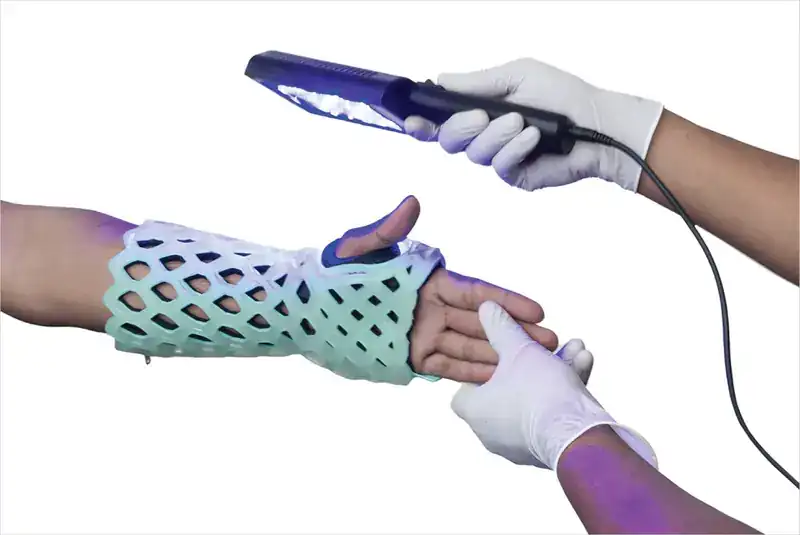

Step 3
Cure it. Done.
Three to ten minutes under the RizyCure light. The polymer hardens into a rigid, ventilated shell.
Removal
Pliers, not a saw
Cut away with bone-cutting forceps. No cast cutter, no saw burns, no noise, no dust. For children the zip-puller is removed at application.

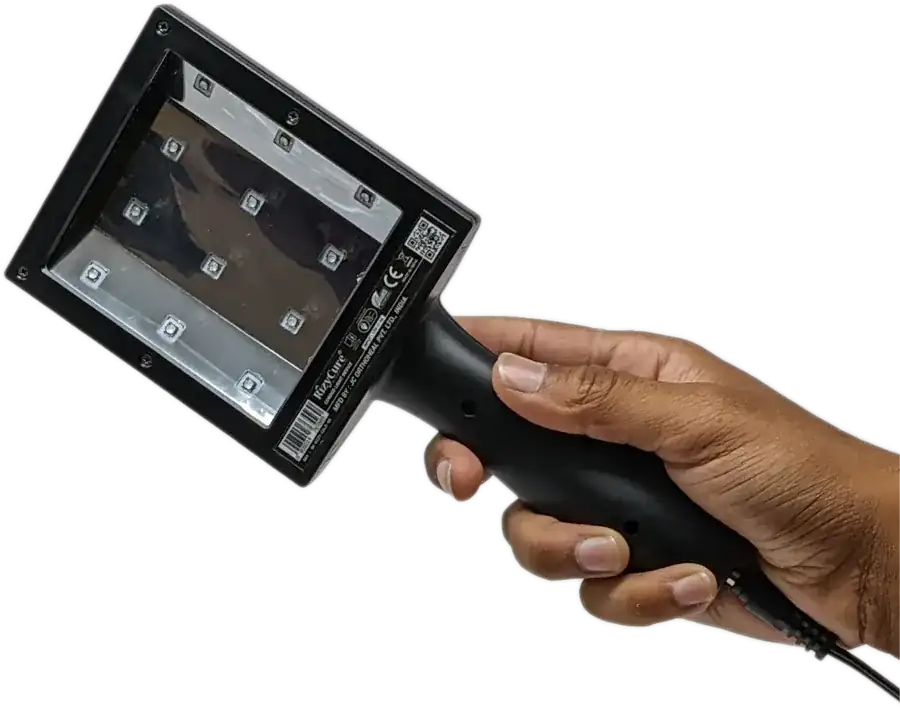

RizyCure®
The light that does the work
~27–30 mW/cm² of visible blue light, no ultraviolet, 250 g, mains-powered.
Compared
Six generations of immobilisation
| FlexiOH® | Plaster of Paris | Fiberglass | Thermoplastic | 3D-printed cast | |
|---|---|---|---|---|---|
| Holds a closed reduction | applied and moulded immediately after reduction | Yes | Yes | No | No |
| Application process | Cured with RizyCure light | Water bath | Water bath | Hot water bath or hot-air oven | 3D scan, model and print |
| Material sensitive to moisture | No | Yes | Yes | No | No |
| Mouldability | Easy and good | Easy and good | Poor | Easy and good | No adjustment after printing |
| Skill required | Moderate | Advanced | Advanced | Advanced | Moderate |
| Application time | 10–12 min | 30–45 min | 20–25 min | 25–30 min | 12–24 hours |
| Post-curing / setting time | 5–10 min | 10–12 hours | 15–20 min | 10–15 min | Not applicable |
| Weight | Very light | Very heavy | Light | Light | Very light |
| Rigidity | No change with heat or moisture | Strength reduces with moisture over time | Very rigid, too strong to cut | Loses rigidity at higher temperature | No change with heat or moisture |
| Washability | Absolutely washable | No | No | Partial | Absolutely washable |
| Drying after washing | Self-drying | Not applicable | Not applicable | 30 min – 1 hour, special care | Self-drying |
| Skin hygiene | Best | Poor | Poor | Better | Best |
| Dead-skin accumulation | No | Yes | Yes | Yes | No |
| Skin visible after application | Yes | No | No | No | Yes |
| Surface in contact with skin | Water non-absorbent foam | Stockinette | Stockinette | Direct skin | Direct skin |
| Skin irritation | Very little or none | High | High | Less | Very little or none |
| X-ray penetration | Partial | Very little | Partial | Partial | Yes |
Swipe the table sideways to see every column →
Source: OrthoHeal comparison of orthopaedic immobilisation generations. Clinical selection remains the treating clinician's decision.
Ask a technical question
Material data, cure characteristics and handling questions go to our technical team.
