Step 1
Size it
Choose the variant and size. The pre-cured immobilizer is soft and mouldable.
OrthoHeal's patented handheld curing device. High-intensity, 100% UV-free blue light hardens a FlexiOH® immobilizer in three to five minutes.
Intended uses
- Curing every FlexiOH immobilizer variant
- Cast rooms, clinics, day-care and mobile fracture services
Technical specifications — RizyCure Corded
| Weight | 250 g |
| Medical equipment class | Class I |
| Output power | ~48 W |
| Light intensity | ~27–30 mW/cm² · 185,000–200,000 lux |
| Power input | 110–240 V AC, 50/60 Hz |
| Power output | DC 12 V, 5 A max |
| Protection from shock | Type B |
| Operating temperature | 0–40 °C (32–104 °F) |
| Relative humidity | 10–85 %, non-condensing |
| Maximum continuous run | About 10 minutes |
Precautions
- For professional use by orthopaedic practitioners only
- Avoid direct exposure of the blue light to the eyes
- Maximum safe continuous run time is about 10 minutes; do not rest the running device on a surface that can catch fire
- Do not open, modify, or power with any other adapter; do not use with wet hands or if the light blinks
- Keep away from children
Application
Size it. Zip it. Cure it.
Step 2
Zip and lock it
Wrap, zip and set the limb. Align the bone now — nothing changes after curing.
Step 3

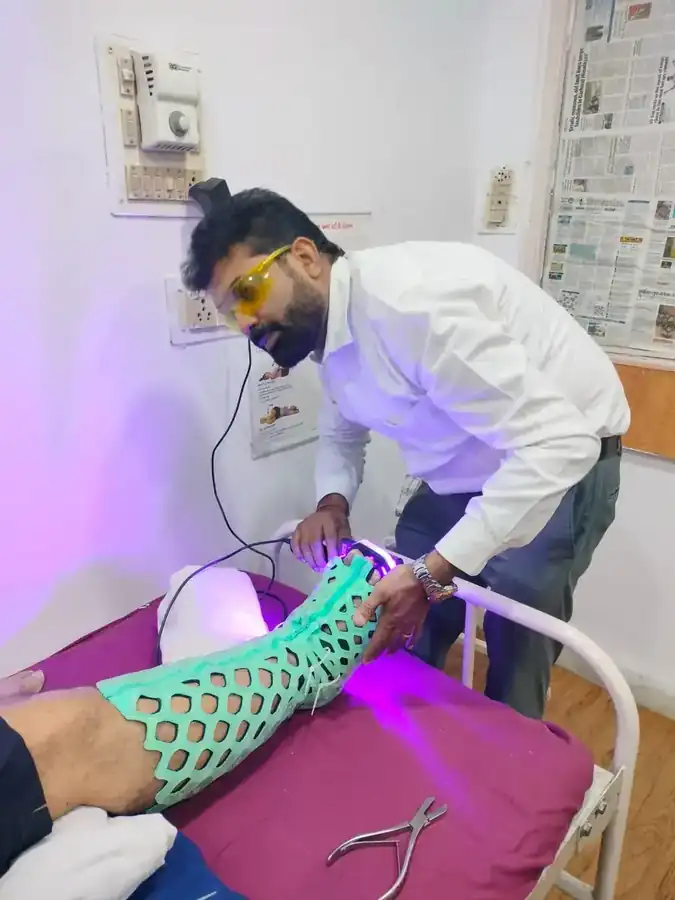

Cure it. Done.
Three to five minutes under the RizyCure light. The polymer hardens into a rigid, ventilated shell.
Instructions for patients — recommended
- Daily activities that need minimal mobility; shallow pools and bathtubs
- Clean the skin in the open spaces regularly with a small brush or cotton bud
- A hair-dryer on the cool setting dries trapped moisture
- Elevate the limb to reduce swelling
Not recommended
- Do not touch the outer surface during curing — it can burn
- No heavy lifting or strenuous activity; no unnecessary pressure on the immobilizer
- Do not apply or remove without your orthopaedic practitioner
- Do not peel the foam layer; keep away from fire
